Outdoor GYTS Fiber Optical Cable 2-144 Cores Aerial and Duct

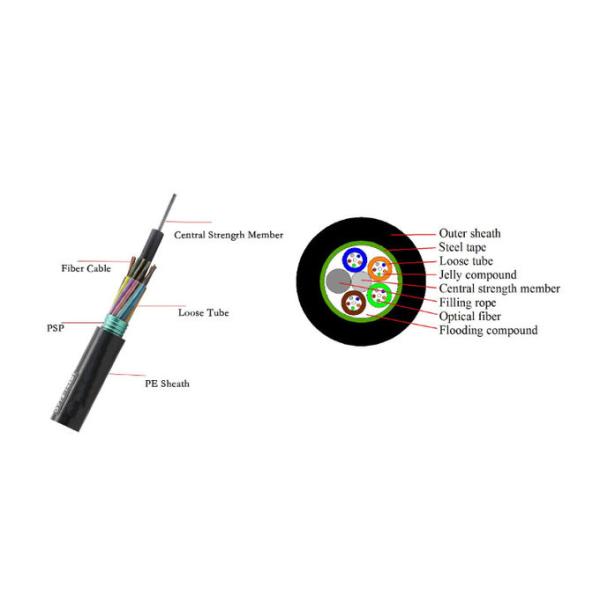

The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.

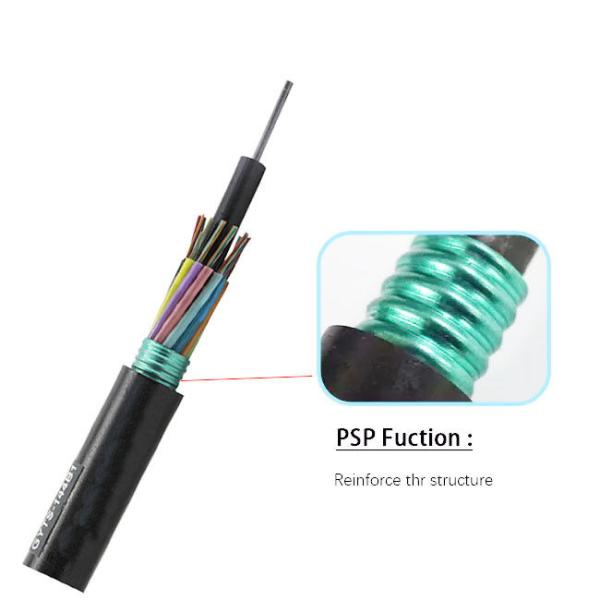

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Applicable fields
1.Aerial / Duct
2.Connecting communication equipments
3.Multi-cores wiring system in data center
Structure characters
1.Corrugated steel tape offers high tension and crush resistance
2.Special gel in the tube offers ceitical protection for the fibers
3.With steel wire central strength member
4.Anti-UV PE jacket
5.Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span.
Technical Data
| Fiber range | Cable outer diameter | Cable weight | Min.bending radius | Allowable tesion(N) | Max.crus loading force(N/1000mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-30 | 9.8 | 115 |
| 32-36 | 10.6 | 140 |
| 38-60 | 11.0 | 140 | 10 times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 62-72 | 11.6 | 165 |
| 74-96 | 13.2 | 205 |
| 98-120 | 14.7 | 245 |
| 122-144 | 16.1 | 285 |
| 146-216 | 16.6 | 300 |
| 218-240 | 19.8 | 395 |
| 242-288 | 22.0 | 470 |
Product show
Packing &delivery
1) Length: 3000m/roll, other length is available according to clients request.
2) Packing: wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
